40′ Open Top Coil Container

DRY | DRY VAN (DV) | GENERAL PURPOSE (GP)

40 FT OPEN TOP COIL CONTAINER (40’*8’*9.5’)

Experience the reliability and strength of ISO Heavy Duty Containers at DiamondBlue Shipping Solutions. Our 40′ x 8′ x 9.5′ containers are designed to meet the demands of heavy-duty transportation and storage.

Built with superior-quality materials, our ISO containers ensure exceptional durability in challenging environments. Whether you need to transport goods globally or store them securely, our containers provide the perfect solution.

At DiamondBlue, we prioritize customer satisfaction and offer customized container solutions tailored to your specific requirements. With our industry expertise and commitment to excellence, we guarantee the highest standards of quality and service.

Discover the versatility of our ISO Heavy Duty Containers. Trust DiamondBlue Shipping Solutions for all your container needs. Contact us today for a competitive quote and let us assist you with your requirements.

Usages

The 40 feet general purpose container finds a wide range of applications because of the extra room offered. The extra room proves to be perfect to store almost anything such as motor vehicles, machinery, sporting equipment, tools and even non-perishable foods & items. The extra-large storage space in the 40 feet general purpose container is readily used to store voluminous items with utmost ease and convenience.

These containers happen to be pretty strong, tough, and durable which plays a crucial role in keeping the inner contents safe from any kind of physical damage. The 40 feet general purpose container has generalised multipurpose uses in different industries for general cargo of different varieties.

Product Specification

SpecificationDetails
MAX. CUBIC CAPACITY80.00 CU.M.
GROSS WEIGHT82,700 KG
TARE WEIGHT (±3%)7,700 KG
MAX. PAYLOAD75,000 KG
STACKING LOAD32,600 KG

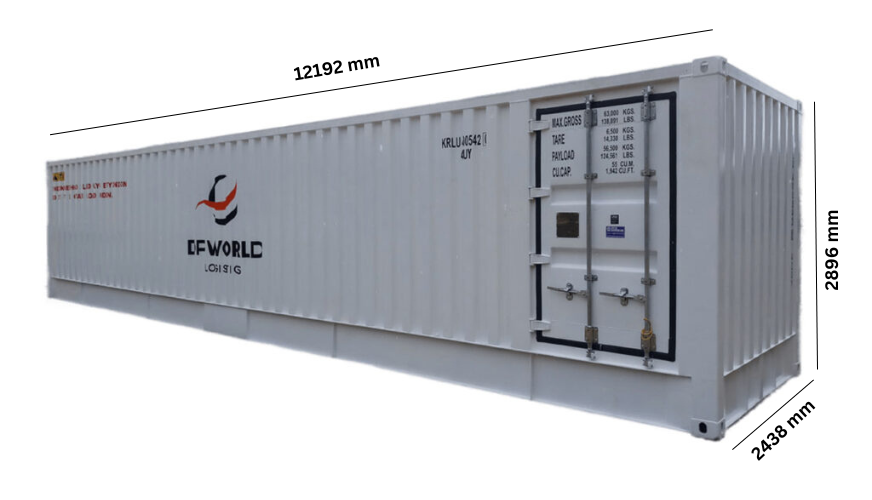

External Dimentions

MeasureLengthWidthHeight
Milimiter12192 +0,-62438 +0,-52896 +0,-5
Feet4089.5

Internal Dimensions

MeasureLengthWidthHeight
Milimiter12088 +0,-52230 +0,-52684 +0,-5
Feet39.67.7?

Door Opening Rear

MeasureWidthHeight
Milimiter2338 +0,-52578 +0,-5
Feet??

Door Opening Side

MeasureWidthHeight
Milimiter829 +0,-52390 +0,-5
Feet??

Other Specification

MAX. CUBIC CAPACITY80.00 CU.M.2,823 CU.FT.
GROSS WEIGHT57,100 KG125,986 LBS
TARE WEIGHT (±3%)7,100 KG15,652 LBS
MAX. PAYLOAD50,000 KG110,230 LBS
STACKING LOAD30,600 KG67,461 LBS

Construction

Lorem Ipsum has been the industrys standard dummy text ever since printer took a galley. Rimply dummy
text of the printing and typesetting industry
1: General
The container will be constructed with steel frames, fully vertically corrugated steel side and end walls, corrugated steel roof, steel flooring, corrugated four hinged doors and ISO 1161 corner casting fittings at eight corners. All steelworks will be built up by MIG welding. All exterior welding including that on base structure will be continuous to give perfect water tightness.
2: Base Frame
The base frame will be composed of two 8mm thick bottom side rails, 39 NOS cross members (IS 4923 YST 310 RHS PIPE 145*82*3.2MM).
3: Front Frame
The front end frame will be composed of one front sill (6mm thick), two front corner posts (6mm thick), one front header (6mm thick), four corner castings and 2mm thick steel sheets fully vertically corrugated joint together by automatic welding.
4: Rear Frame
The front end frame will be composed of one rear sill (6mm thick), two corner posts (6mm thick), one rear header (6mm thick) with header plate, four corner fittings and Door System with locking devices.
5: Door System
Doors will consist of two door leaves, each leaf consists one corrugated door panel, steel door frame which consists of c channel for horizontal member (upper & lower) and RHS pipe (96*48*3.2mm) for vertical members. They are welded together to form the rectangular door leaves. The doors are so arranged that the each leaf with gaskets and two locking devices which consists galvanized DLM road, door lock handles, camp keeper, brackets. The doors will be installed by hinges blades, hinge pins, washers and bushes to the rear end frame.
6: Side Wall Assembly
Each side wall will be composed of a TSR IS 4923 YST 310 (100*100*5MM), a number of corrugated sheet panel joint together by automatic welding, (96*48*3.2mm) pipe for vertical support and middle post to strengthen the side wall. Each side wall has a door with 829mm door opening. This side door consists of two (96*48*3.2mm) pipe for vertical member and two c channel (upper & lower) for horizontal member.
